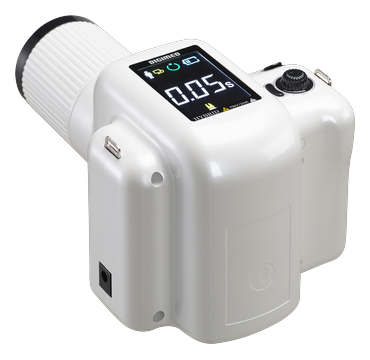

HYBRID C70
Ergonomic design for the benefit of
intuitive operation
Quality X-ray
0.4 mm focal spot & condensed Al-filtration emission
Protection Shield inside
Totally sealed the X-ray generating part and blocked leakage radiation
Color LCD Display
Clear display and easier setting
Dial button Control
Navigation and selection function in one button
Rechargeable Battery
High efficiency & High capacity
DC High Frequency
Great compatibility with Dental films,
IO sensors, Phosphor plates
70kV, 2mA
Designed to acquire Quality images with a
small amount of X-ray exposure.
(Settable time range: 0.05 ~ 1.0 sec)
HYBRID System
Applied dual power source system and
multiple insulation structure for stable X-ray
emission and maintaining constant insulation.
Specification
Model Name
HYBRID C70
X-ray Type
DC High Frequency
X-ray Tube
Tube Voltage
70kV
Tube Current
2 mA
Focal Spot
0.4 mm
Exposure Time Setting
0.05~1.0 Sec. (0.01 sec control)
Total Filtration
1.5 mmAl or higher
SSD
200 mm
Total Weight
1.8kg
Dimension
146(w) x 227(d) x 126(h)
Power Requirement
Battery
DC 14.8 V
Charger
AC 100~240 V
